The Baofeng UV-5R Plus walkie-talkie is a compact UHF/VHF radio with 128 channels and an FM radio receiver. It has a transmission power of 5W in VHF and 4W in UHF. Its LCD screen allows for easy monitoring of the channel in use, battery status, and VOX function. It has a range of up to 5 km in open field.
Baofeng UV-5R Plus Walkie Talkie
Baofeng UV-5R Plus Rechargeable Walkie Talkie 1800mAh FM Radio VHF/UHF 2 m/70 cm Radio with Dual Band Portable Radio (Black)
✔ Compact UHF/VHF radio, 128 Channels, FM radio receiver, Transmit power: VHF: 5W / UHF 4W.
✔ LCD screen: Its LCD screen allows you to easily check the channel in use, the battery status, or the VOX function activation.
✔ Range of up to 5 km: The Baofeng UV-5R Plus provides communication within a 5 km radius in open field.
+ product
The Baofeng transceiver The UV-5R Plus is an ideal radio for active individuals who want to communicate quickly and easily without relying on mobile networks. Furthermore, this device offers a wide, selectable frequency range. It can also be used for recreational sports or as an emergency device if you are alone on a tour or become separated from your hiking or climbing partners for a short time, allowing you to locate each other. Even in challenging situations, the Baofeng UV-5R Plus radio is a practical companion.
Main Features:
Large color graphic LCD display
Vibrate, Scan, VOX, Dual Standby, Out of Range functions
Emergency Call function
Low Battery Indicator
Battery Saver
Auto Squelch
Keypad Lock
Long Range Flexible Antenna
FM Radio Receiver
Frequency Band:
65MHz-108MHz (FM Radio Reception Only)
VHF: 136MHz – 174MHz (Rx/Tx)
UHF: 400MHz – 480MHz (Rx/Tx)
50 CTCSS / 105 CDCSS
Number of Channels: 128
Frequency Stability: 2.5 ppm
Frequency Steps: 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Standby current consumption ≤ 75mA
Receive current consumption: 380mA
Transmit current consumption ≤ 1.4A
Operating mode: Simplex or half-duplex
Transmitter:
High or low power selection: 1W/4W
Modulation type: FM
Emission class: 16kΦF3E / 11kΦF3E
Maximum deviation: Frequency <5 kHz (wide) / <2.5 kHz (narrow).
Residual radiation ≤-65dB (wide) / ≤-60dB (narrow).
Receiver:
Sensitivity: 0.2 μV (12 dB SINAD)
Intermodulation: 60 dB
Audio Power: 1000mW
Adjacent Channel Selectivity: 65/60dB
Audio Distortion < 10%

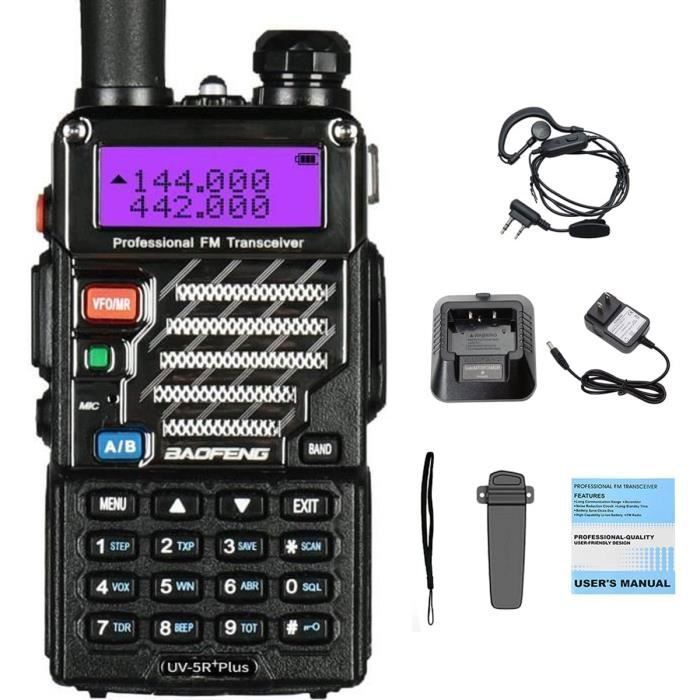

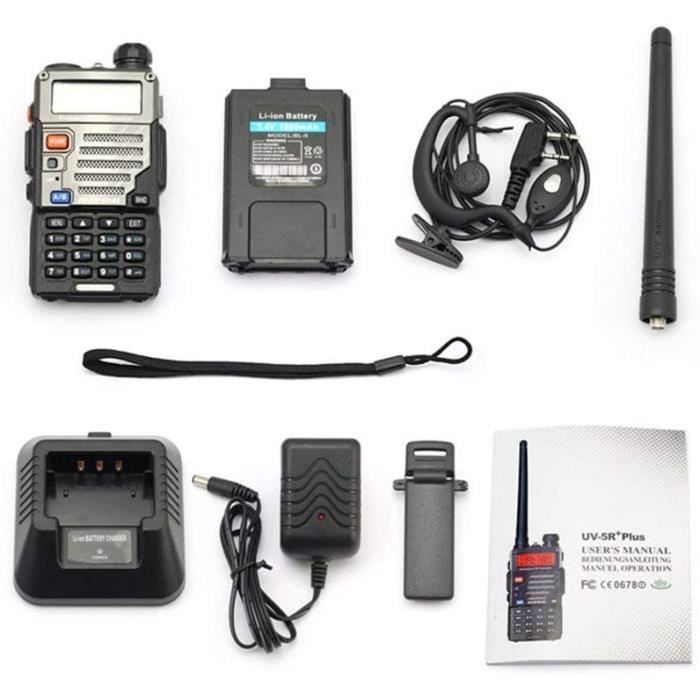

Package Contents:
1 x UV-5R Plus Walkie-Talkie
1 x Headset
1 x Charging Station
1 x Lithium Battery
1 x Adapter
1 x Antenna
1 x Belt Clip
1 x Wrist Strap
1 x English Manual
Specifications
- Operating Temperature: -20℃- 60℃
- Power Supply: 7.4v/1800mAh Rechargeable Lithium-Ion Battery
- Antenna Impedance: 50Ω
- Dimensions: approx.110mm x 58mm x 32 mm
| UV-5R Plus | BaoFeng UV-5R | BaoFeng B888s | Mini Walkie Talkie | |
| Quantity | 1 Piece | 1 Piece | 2 Pieces | 2 Parts |
| Battery | 1800 mAh | 1800 mAh | 1500 mAh | 1500 mAh |
| View product | View product | View product product | View product |
