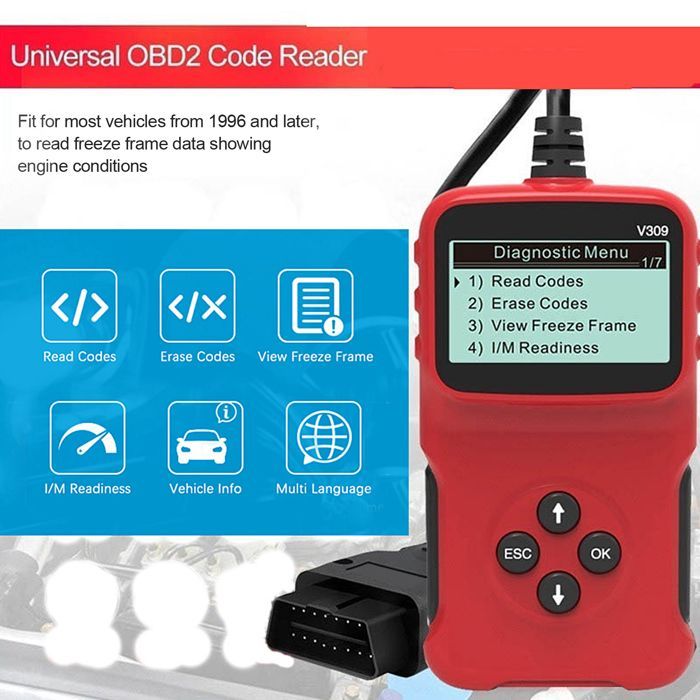

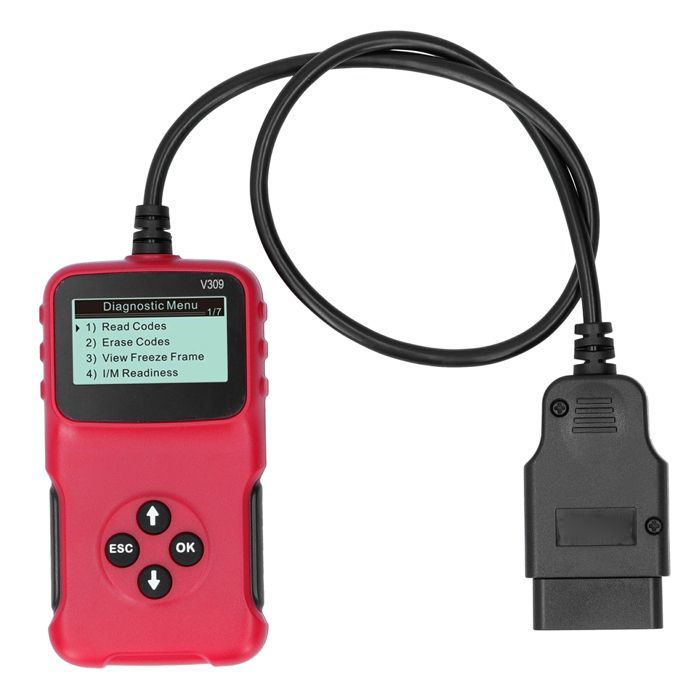

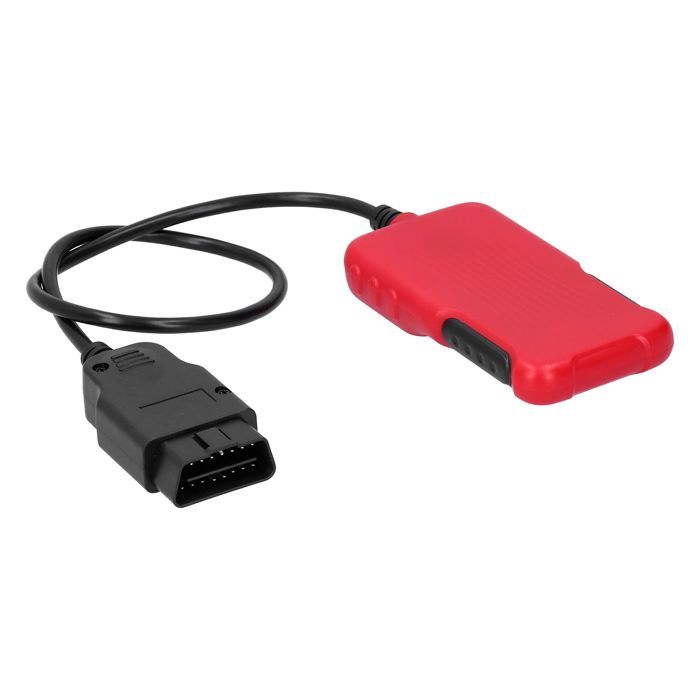

Item Type: Car Diagnostic Scanner Material: ABS Model: V309 Operating Voltage: 9-16V Working Current: 80mA Working Environment: 0-60℃ Storage Temperature: -20-70℃ Size: approx. 13x7x2cm / 5.1x2.8x0.8 inches. Mounting: Fits most vehicles from 1996 and later. Displays current sensor data, including: Engine speed per minute (RPM), Calculated load value, Coolant temperature, Fuel system status, Speed, Absolute throttle position, Short-term fuel status, Associated oxygen detection voltage, Fuel system status, Fuel pressure, Fuel consumption monitoring. Displays and records data graphs. Freeze frame data. Continuous and discontinuous oxygen detection results. Communication protocol: For SAE J1850 PWM (41.6 Kbaud), For SAE J1850 VPM (10.4 Kbaud), For ISO 9141-2 (5 baud initial, 10.4 Kbaud), For ISO 14230-4 KWP (5 baud). init, 10.4 Kbaud)For ISO 14230-4 KWP (fast init, 10.4 Kbaud)For ISO 14230-4 CAN (11 bits ID, 500 Kbaud)For ISO 14230-4 CAN (29 bits ID, 500 Kbaud)For ISO 14230-4 CAN (11 bits ID, 250 Kbaud)For ISO 14230-4 CAN (29bit ID, 250 Kbaud)
