Chip: 3 * TMC2208 Build Area: 300mm*300mm*400mm Net Weight: 11Kg Filament Type: 1.75mm PLA/ABS/Wood Two Cooling Fans Offline Operation Support

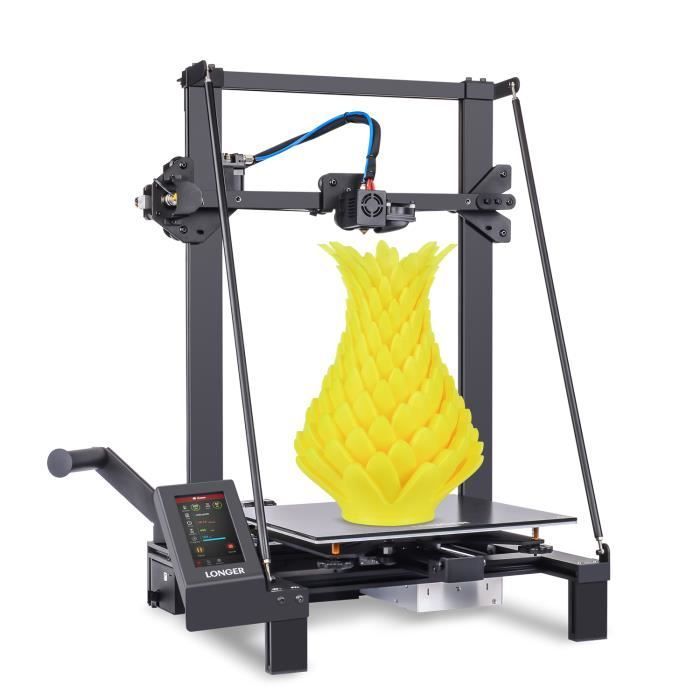

LONGER LK5 PRO Upgraded Version FDM 3D Printer
280W Maximum
Advantages:
1. Advanced, quiet, and efficient chip: 3*TMC2208, 3 chips for the X, Y, and Z axes.
2. Optional BLTouch sensor for automatic leveling. Open Source, supports DIY expansion (not included in the package).
3. Offline printing from TF card (TF card not included in the package)
4. Built-in filament sensor and print resume, no need to worry about sudden power outages
+ product
Features:
1. 【90% pre-assembled with a stable triangular structure】 The LONGER LK5 Pro is a large, affordable 3D printer with 90% pre-assembly and a print size of 300 x 300 x 400 mm; it features two angled rods to maintain the Z-axis as a stable triangular structure for improved 3D printing quality. And it's 90% pre-assembled at the factory before delivery, making assembly easier and saving you time.

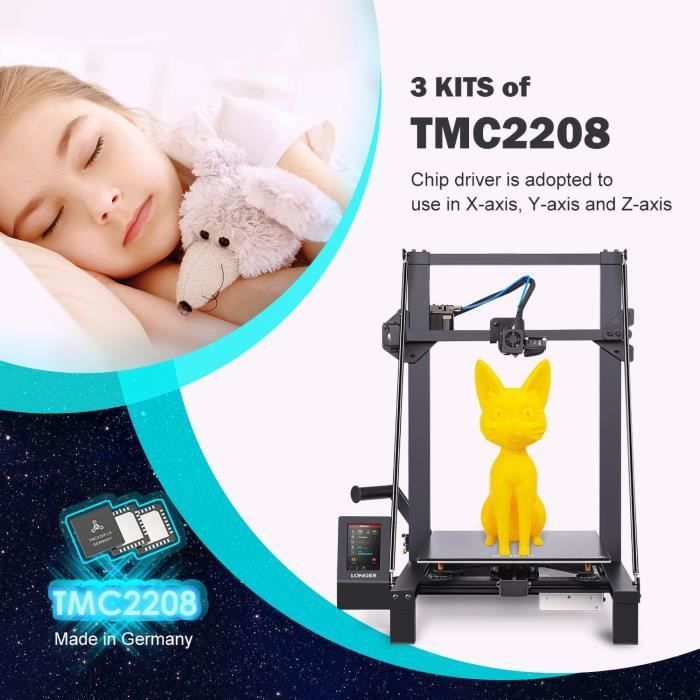

2.【Silent Printing and Open Source】The LK5 PRO is integrated with 3 TMC2208 chipset kits for the X/Y/Z axes for quiet printing, reducing motor noise. Developed with an open-source motherboard for the LK5 PRO, it will be easier for you to add optional parts to the 3D printer, such as BLTouch for auto-leveling or upgrading to Marlin 2.X for beta testing.
3.【4.3-inch Color Touchscreen】This FDM 3D printer is built with a 4.3-inch color touchscreen and features a more user-friendly interface for better interaction with the printer, simple operation, and easy monitoring of the printing process.
4. 【Upgraded Glass Bed】This FDM 3D printer is equipped with an upgraded ceramic-coated glass bed for easy removal when printing is complete.
5. 【High-Temperature Resistant Teflon Tube】The LK5 Pro is equipped with a high-temperature resistant Teflon tube that can withstand temperatures up to 280℃. It is less prone to clogging inside the nozzle and provides consistent print quality.
6. 【Filament Detection and Print Resume】Real-time monitoring; the process can be automatically paused and resumed, successfully increasing the print rate and saving filament.
Specifications:
Brand: Longer
Item Name: 3D Printer
Operating Temperature: 5℃-35℃/ 41-95°F
Relative Humidity: 30% to 90%
Input: 100-120V AC 7A, 200-240V AC 3.5A, 50-60Hz;
Output: 24V/DC 15A
Max. Power: 280W
Building Volume: 300 mm (L) * 300 mm (W) * 400 mm (H)
Layer Thickness: 0.1-0.4 mm
Printing Speed: 20-150 mm/s
Heated Bed: Yes
Extrusion Temperature: Ambient temperature up to 250°C
Filament Diameter: 1.75 mm
Filament Type: PLA/ABS/Wood
Filament Color: Various colors available
Software: Cura, Repetier, etc.
Operating Systems: Windows/Mac/Linux
File Format : STL/G-CODE
Connection: USB cable or SD card
Printing Technology: FDM
Specifications
- Weight & Dimensions:
- Product Dimensions (L * W * H): 580 * 540 * 663 mm / 22.83 * 21.25 * 26.10 inches
- Package Dimensions (L * W * H): 622 * 588 * 193 mm / 24.48 * 23.14 * 7.59 inches
- Net Weight: 11 kg / 24.25 lb
- Gross Weight: 13 kg / 28.66 lb
