The Baofeng UV-5R transceiver is an ideal radio for active individuals who can communicate quickly and easily without relying on mobile networks. It can also be used for recreational sports or as a device.
Baofeng UV-5R FM VHF/UHF Walkie Talkie Radio with Dual Band, Display, Standby, and Built-in Clock (Headset, Microphone, Programming Cable, Camouflage Included)
The Baofeng UV-5R transceiver is an ideal radio for active individuals who can communicate quickly and easily without relying on mobile networks. It can also be used for recreational sports or as an emergency device if you are alone on a tour or become separated from your partners during a short hike or climb, allowing you to locate each other.
Features:
The device's design combines ease of use and good style. Furthermore, this device has a wide controllable frequency range. Even in challenging situations, the Baofeng UV-5R radio is a practical companion.
Dual band, dual display, dual standby, built-in clock with backlight, step frequency tuning, high/low power switching, power-saving mode, long/short wave selection, automatic backlight, independent standby mode changes (timeout timer), 50 CTCSS and 104 DCS codes.
No transmission delay, ANI encoding, PC or manual display, DTMF encoding, PTT ID, automatic keypad lock, busy channel lock function, scan priority, alarm (emergency and battery)
Specifications:
1. GENERAL:
Frequency range: 65MHz-108MHz (FM radio reception only) / VHF: 136MHz - 174MHz (Rx/Tx). UHF: 400MHz - 480MHz (Rx/Tx)
Number of reserved channels: Up to 128
Frequency stability: 2.5 ppm
Frequency steps: 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Antenna impedance: 50Ω
Operating temperature: -20℃-60℃
Power supply: 7.4v/1800mAh rechargeable lithium-ion battery
Standby current: ≤ 75mA
Receive current: 380mA
Transmit current: ≤ 1.4A
Operating mode: Simplex or semi-duplex
Cyclic: 03/03/54min (Rx/Tx/Standby)
Dimensions: approx. 110 mm x 58 mm x 32 mm
2. Transmitter:
RF Power: 4W/1W
Modulation Type: FM
Emission Class: 16K F3E/11K F3E(W/N)
Maximum Frequency Deviation ≤ 5 kHz / ≤ 2.5 kHz(W/N)
Residual Radiation < -60 dB>
3. Receiver:
Sensitivity: 0.2 μV (12 dB SINAD)
Intermodulation: 60 dB
Audio Power: 1000mW
Adjacent Channel Selectivity: 65/60dB
Audio Distortion < 10%="">

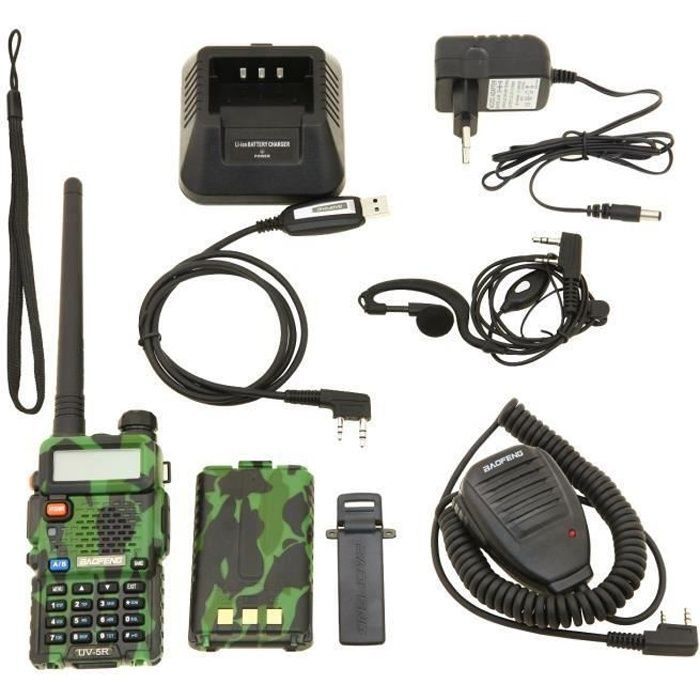

Package Contents:
1 x Walkie-Talkie
1 x Headset

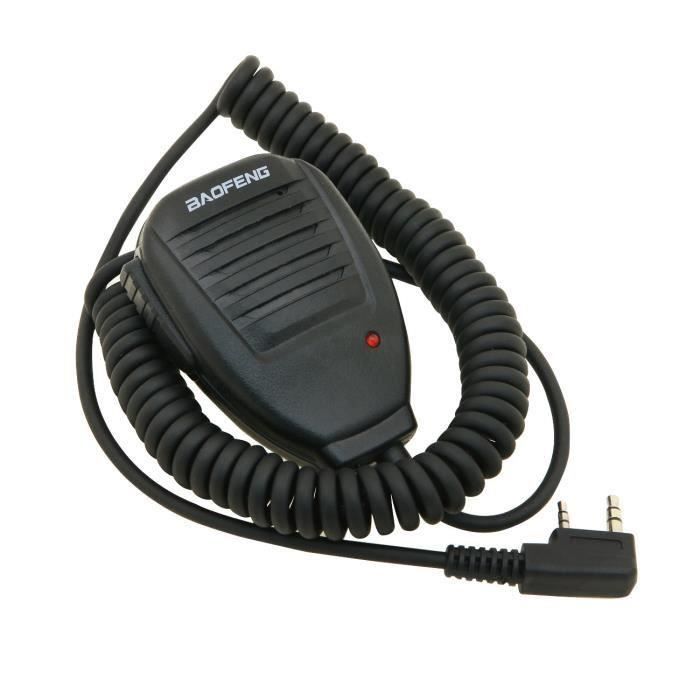

1 x Handheld Microphone with Red Light

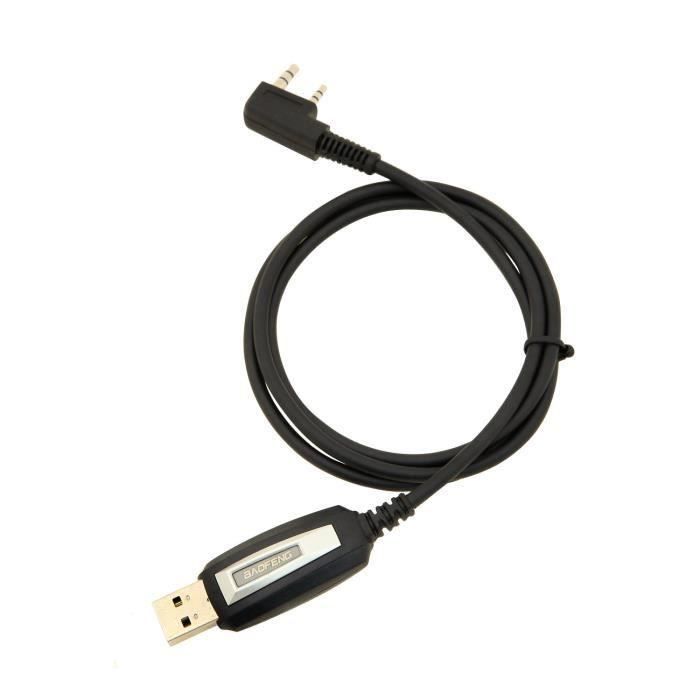

1 x Programming Cable
1 x Charging Station
1 x Lithium Battery
1 x Adapter
1 x Antenna
1 x Belt Clip
1 x Wrist Strap
1 x French Manual (Please contact the seller to request it)
