New 2024 Version Awning - Retractable Awning - Full Cassette - Powder-Coated Extruded Aluminum - Motorized with Manual Override - 0 to 75° Tilt - Solution-Dyed Acrylic Fabric - LED Lighting. External Dimensions: 6 x 3.5 m. Structure Details: Extruded aluminum frame, injection-molded parts, powder-coated aluminum finish. Solution-dyed acrylic fabric. UPF 50+ UV protection. Water-repellent treatment. Anthracite gray frame. Anthracite Grey Fabric

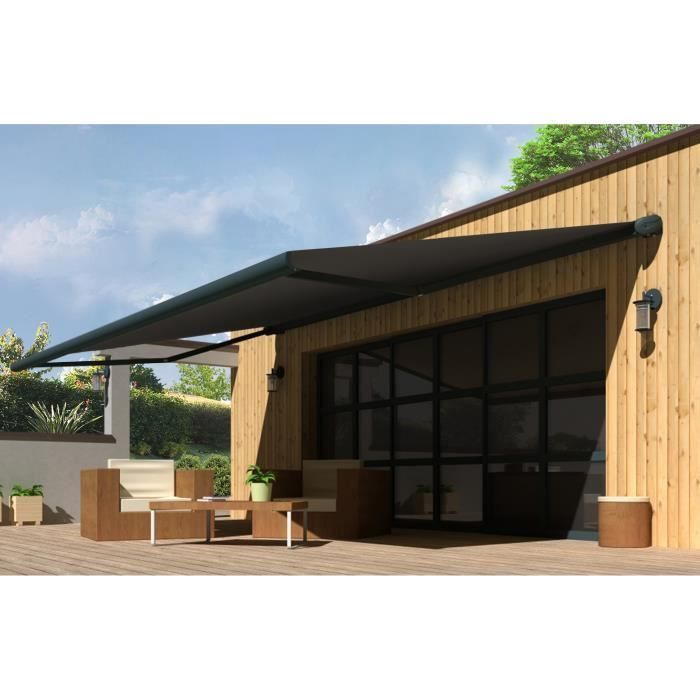

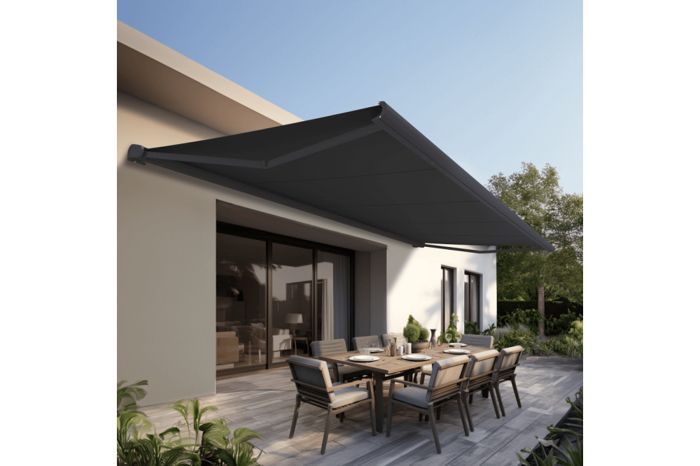

OMBRAZUR – Full Cassette Awning PROTECT LED – 6×3.5 m
Motorized full cassette awning 6×3.5 m LED anthracite grey frame – grey fabric
● New 2024 version
● Compact design
● Wall or ceiling installation
● Reduced footprint
● Optimized arm tilt adjustment
● Motor adjustment accessible without cassette mechanization
● Cassette fully protects the fabric and arms when closed
● 21 m² surface area
+ product
Features:
● Structure in structured anthracite grey extruded aluminum, 78mm diameter roller tube ensuring rigidity tube.
● Aluminum arm with double stainless steel cable, protected by an insulating sheath.
Tested over 6000 cycles (1 cycle = 1 opening and 1 closing)
● Motorized operation with remote control and manual override.
● Tilt: wall mounting 0° to 75°, ceiling mounting 15° to 90°
Mounting:
● Wall mounting
● Ceiling mounting
Fabric: Solution-dyed acrylic
The color is impregnated into the very core of the fiber during its manufacture, unlike other fibers that are colored by simple dipping. This guarantees vibrant and long-lasting colors.
The fabric undergoes a specific treatment that also protects it from the elements.
Standard colors: Powder coating
● The powder coating, or polymer coating, is applied by spraying a Teflon-like powder that adheres electrostatically to the entire surface of the parts and profiles. The entire profile is then heated to 180-210°C. This process fixes and hardens the paint on all surfaces of the aluminum profiles.
Perfect protection!
Option:
● LED Lighting
| Number of LEDs per meter | 30 |
| Kelvin | 3500k |
| LED Type | SMD 5050 LED |
| LED Color | Warm White |
| Lumens (5 meters) | 3000 LM |
| Power (5 meters) | 81 watts |
| Indice of Protection | IP65 |
Features
- Extruded aluminum frame with structured anthracite gray lacquer finish (RAL7016)
- Solid-dyed acrylic fabric – Anthracite gray
- 78mm diameter roller tube ensuring tube rigidity

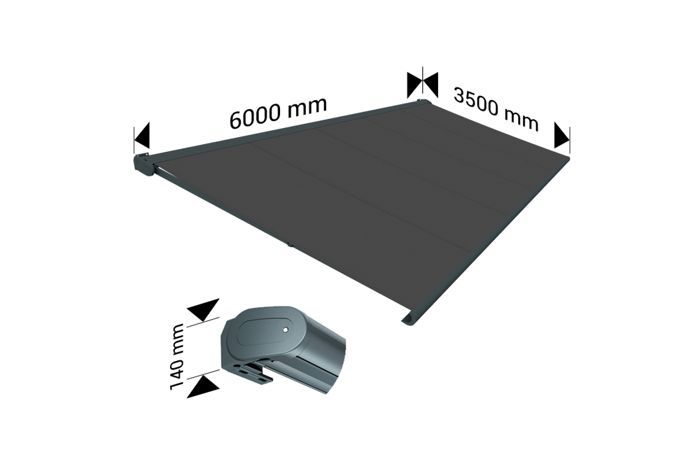

- Dimensions: Width 6.00 m x Projection 3.50 m
- Motorized with remote control and manual override
- Awning motor on the right (viewed from the outside)
- Double stainless steel cable arms
- Adjustable tilt for wall mounting: 0° to 75°, ceiling mounting: 15° to 90°
- Option: Lighting LED
